Foot Valves Flange End

Our PP foot valve with screw end association is expected to meet the necessities of the various ventures searching for the tight end association. The offered PP foot valve with screw end association is accessible in grouped determination and furthermore according to bespoke detail at the best expenses in the market.

Inquiry Now

FOOT VALVES FLANGE END

These PP foot valve accompanies the female line strings to coordinate with the tightened strung line or other gear, making the reach versatile for a screw end association need, appropriate for the association of the lines, siphons and other channeling framework hardware.

The offered PP foot valves are the blend of the check valve and preparing gear, intended to manage pressure in the pipes framework simultaneously taking out solids which are a typical reason for sticking in the few handling frameworks. As the name suggests, the offered pp foot valve is invented utilizing the polypropylene material and hereafter is the smartest option for the ventures managing the destructive liquids. The characterized development and quality controlled assembling has qualified us for get a really faultless scope of the PP foot valve that performs immensely all through its future. This valve is accessible in complex measurements and furthermore in the uniquely crafted particulars at the most serious rates in the market.

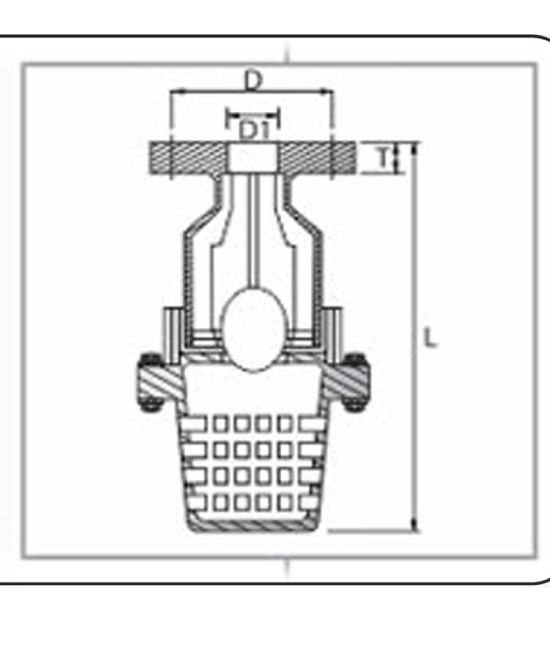

Dimension Table of FOOT VALVES FLANGE END.

Size
Inch	MM	D	D1	L	T
1”	25	121	25	196	21
1.1/2”	40	140	40	218	22
2”	50	166	50	218	24
2.1/2”	65	183	65	311	28
3”	80	200	80	311	29
4”	100	228	100	377	31
6”	150	301	150	445	35
8”	200	364	22	550	33
10”	250	420	200	550	33
11”	315	485	200	550	33

All Dimension are ± 2 mm
Maximum working Pressure 10KG/Cm²
Hydraulic Test Pressure
Body 15 Kg /Cm²

BILL OF MATERIAL of FOOT VALVES FLANGE END.

No.	Discription	Materail	Qty.
1	Top Body	P.P/ISO PP	01
2	Bottom Body	P.P/ISO PP	01
3	Ball	P.P/ISO PP	01
4	Ball Ring	P.P/ISO PP	01
5	Seat Ring	Neo Prene Rubber	01
6	Stud,Nut&Washer	S.S 316	–

Special Features of Non Return Valves Flange End.

1. Available in Flange Type in 25 mm to 160 mm and in Screw Type in 25 mm to 100 mm.
2. Manufactured from Poly Propylene, a Chemically inert thermoplastic.
3. Can be used upto 90°C Temp.
4. Hydraulically and Pneumatically tested for 10 Kg upto 4″.
5. Protective and Resistive from most of the corrosive Chemicals.
