Available size in 50 mm to 200 mm. Our enterprise is dedicatedly engaged in bringing forth a remarkable range of Butterfly Valve. Under this category, we offer our clients a wide assortment of PP Butterfly Valve, PP Non Return Valve Flange End, and PP Butterfly Valve Flange End. These can be availed by the clients in different sizes and specifications in order to meet their needs.
Manufactured from premium-grade PP (Polypropylene)
Rust-free and chemical-resistant for long life
Low torque operation for smooth manual control
Lightweight yet strong body design
Zero leakage shutoff with tight seal performance
UV stabilized material suitable for outdoor use
Easy to install and maintain
Available in multiple sizes and pressure ratings
Poonam Industries is a leading manufacturer and supplier of PP Butterfly Valves (Polypropylene Butterfly Valves) based in Ahmedabad, India. Our valves are engineered for high performance in fluid control systems, especially in agriculture, irrigation, chemical processing, and water treatment applications. Designed using virgin PP (polypropylene) material, our valves are corrosion-resistant, lightweight, and ideal for both above-ground and underground piping systems.
Manufactured from premium-grade PP (Polypropylene)
Rust-free and chemical-resistant for long life
Low torque operation for smooth manual control
Lightweight yet strong body design
Zero leakage shutoff with tight seal performance
UV stabilized material suitable for outdoor use
Easy to install and maintain
Available in multiple sizes and pressure ratings
Our PP Butterfly Valves are ideal for use in:
✅ Drip & Micro Irrigation Systems
✅ Agriculture Water Supply
✅ Water Distribution Networks
✅ Fertilizer Mixing Units
✅ Chemical Plants and Labs
✅ RO Plants and Water Treatment Systems
✅ Industrial Piping Systems
Sizes: 2", 3", 4", 6", 8"
Pressure Rating: PN6 / PN10
Operation: Lever Operated
Ends: Flanged
Direct Manufacturer from Ahmedabad, India
Trusted Brand in Agricultural & Industrial Valves
Precision Molded Valves with Long Service Life
Competitive Pricing and Quick Delivery
Custom Branding and Bulk Orders AvailableProduct Desription of PP Butterfly
Available size in 50 mm to 200 mm.
Can be used upto 90°C Temp.
Hydraulically and Pneumatically tested for 15Kg./CM².
| Sr.No. | Part | Qty. | Material |
| 1. | Body | 1 | Polypropylene |
| 2. | Disk | 1 | Polypropylene |
| 3. | Stem ‘O’ Ring | 2 | Neoprene or as specified |
| 4. | Stem | 1 | S.S. |
| 5. | Hinge Pin | 1 | S.S. |
| 6. | Cap | 1 | S.S. |
| 7. | Handle | 1 | Polypropylene |
| 8. | Spring | 1 | S.S. |
| 9. | Handle Pin | 1 | S.S. |
| 10. | Positioner Lever | 1 | S.S. |
| 11. | Handle Cap | 1 | Polypropylene |
| 12. | Positioner Plater | 1 | S.S. |
| Construction | One Piece Body |
| Design | Waffer Disc Design |
| Size Range | 50mm. to 200mm. |
| Test Pressure | 10 kg upto 4″ 6 kg above 4″ |

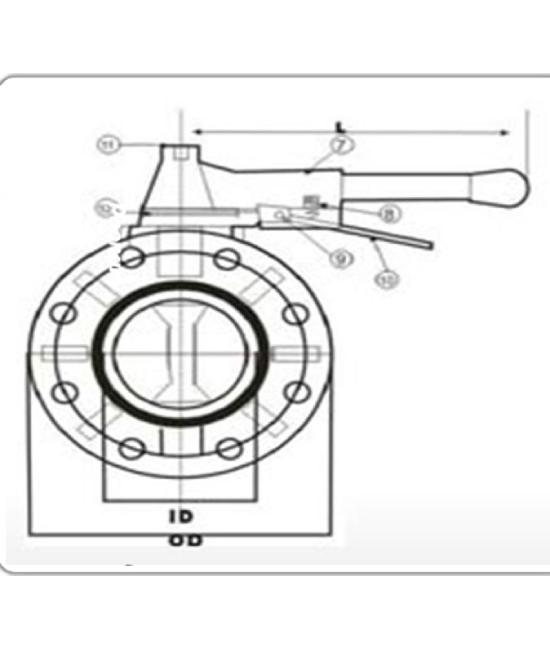

| Valve Size | T | ID | OD | H | L | H1 |
| 50(2″) | 43 | 53 | 159 | 242 | 215 | 168 |
| 65(2.1/2″) | 43 | 66 | 183 | 268 | 215 | 180 |
| 80(3″) | 43 | 80 | 198 | 284 | 215 | 186 |
| 100(4″) | 43 | 103 | 228 | 310 | 215 | 201 |
| 150(6″) | 60 | 153 | 210 | 375 | 272 | 255 |
| 200(8″) | 61 | 201 | 262 | 330 | 272 | 287 |
| 1. Available size in 50 mm to 200 mm. | ||||||
| 2. Manufactured from Poly Propylene, a Chemically inert thermoplastic. | ||||||
| 3. Can be used upto 90°C Temp. | ||||||
| 4. Hydraulically and Pneumatically tested for 15Kg./CM². | ||||||
| 5. Protective and Resistive from most of the corrosive Chemicals. | ||||||
| 6. Flange drilled as per customer’s specification. |
