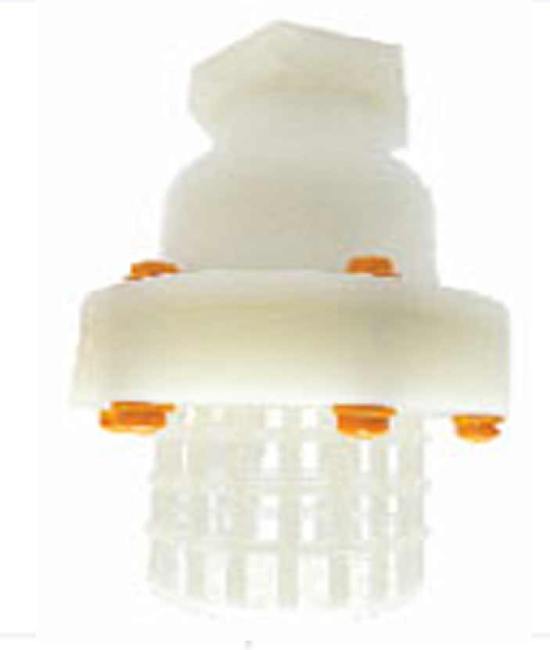

PP FOOT VALVES SCREW END

Poonam Industries is a reputed manufacturer and supplier of PP Foot Valves (Screw End) in India. These valves are manufactured using 100% virgin polypropylene material, offering exceptional chemical resistance, long service life, and consistent performance in irrigation and industrial pipeline systems. The screw end connection allows for easy installation and secure fit in pipelines.

Inquiry Now

PP FOOT VALVES SCREW END IN AHMEDABAD, INDIA

These PP foot valve accompanies the female line strings to coordinate with the tightened strung line or other gear, making the reach versatile for a screw end association need, appropriate for the association of the lines, siphons and other channeling framework hardware.

The presented PP foot valve shares strung end association, is one of the regular associations utilized in the funneling framework. With the long stretches of mastery in the united area, we have completed exact strung end association that makes your fitting position simple and quick and for a similar our PP foot valve with the strung end association is commended the whole way across. This sort of PP foot valve we suggest for the low weight channeling framework, which we can give in complex measurements according to your application necessity. The total structure is of the polypropylene material and subsequently destructive liquid isn’t a limitation for our scope of PP foot valve, accessible at the least conceivable cost in the market.

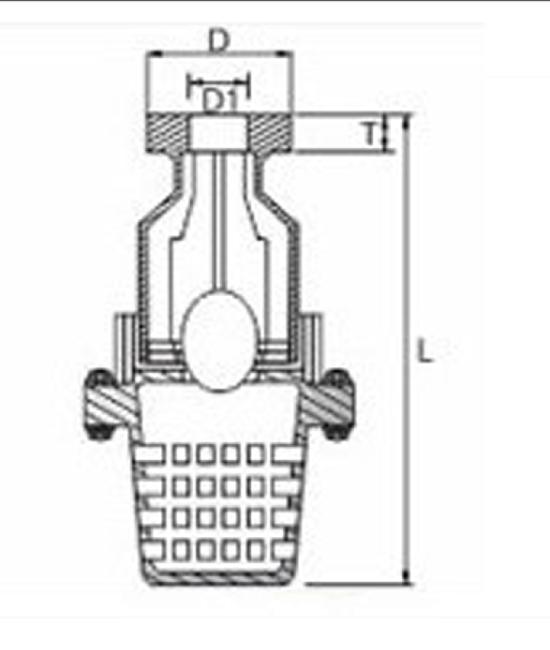

Dimension Table of FOOT VALVES SCREW END.

Size
Inch	MM	D	D1	L	T
1”	25	121	25	196	21
1.1/2”	40	140	40	218	22
2”	50	166	50	218	24
2.1/2”	65	183	65	311	28
3”	80	200	80	311	29
4”	100	228	100	377	31
6”	150	301	150	445	35
8”	200	364	22	550	33
10”	250	420	200	550	33
11”	315	485	200	550	33

All Dimension are ± 2 mm
Maximum working Pressure 10KG/Cm²
Hydraulic Test Pressure
Body 15 Kg /Cm²

BILL OF MATERIAL of FOOT VALVES SCREW END.

No.	Discription	Materail	Qty.
1	Top Body	P.P/ISO PP	01
2	Bottom Body	P.P/ISO PP	01
3	Ball	P.P/ISO PP	01
4	Ball Ring	P.P/ISO PP	01
5	Seat Ring	Neo Prene Rubber	01
6	Stud,Nut&Washer	S.S 316	–

Special Features of Non Return Valves Screw End.

1. Available in Flange Type in 25 mm to 160 mm and in Screw Type in 25 mm to 100 mm.
2. Manufactured from Poly Propylene, a Chemically inert thermoplastic.
3. Can be used upto 90°C Temp.
4. Hydraulically and Pneumatically tested for 10 Kg upto 4″.
5. Protective and Resistive from most of the corrosive Chemicals.
