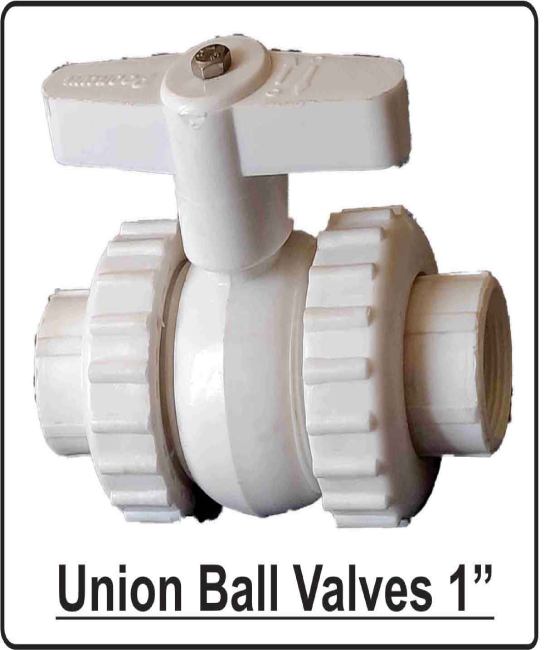

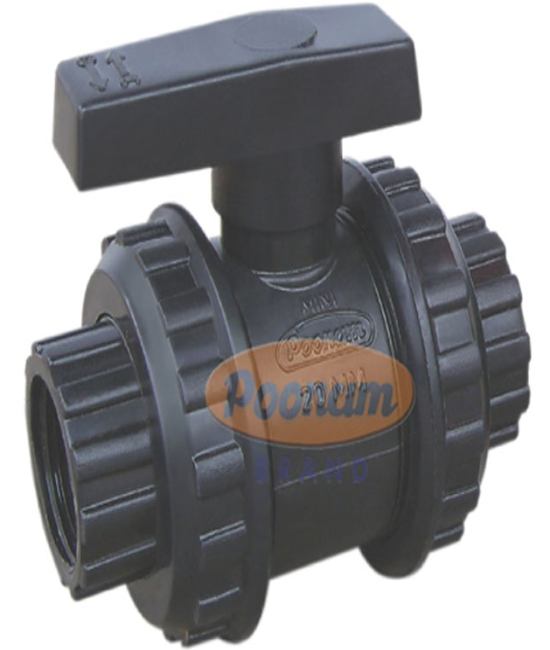

The Union Type Ball Valve is ideal for managing the progression of different liquids and gases immaculately for various mechanical handling applications. These ball valves are planned utilizing reviewed PP materials. We do the trick the prerequisites of our wide and regarded customer base by offering this collection of ball valves in recognized sizes, shapes, measurements and association closes.

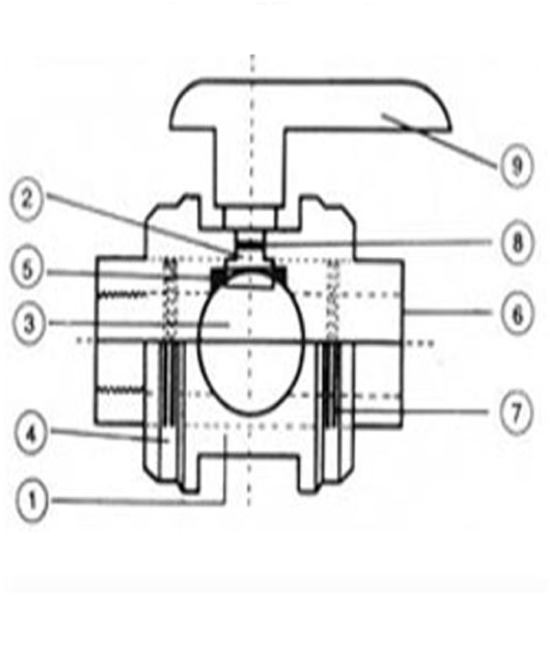

| Sr.No. | Part | Qty. | Material |
| 1. | Body | 1 | Polypropylene |
| 2. | Stem | 1 | Polypropylene with MS Insert |
| 3. | Ball | 1 | Polypropylene |
| 4. | Cover | 1 | Polypropylene |
| 5. | Seats | 2 | PTFE/HDPE |
| 6. | Screw end connector | 1 | Polypropylene |
| 7. | Cover Gasket | 1 | Neoprene or All type of Rubber |
| 8. | Stem “O” Ring Seal | 1 | Neoprene or All type of Rubber |
| 9. | Handle | 1 | P.P. |
| Construction | Multy Piece Body |
| Design | Union Assembly |
| Size Range | 15,20,25,32,40,50, 65, 80 & 100 mm. |
| Max working temp. | 90°C (Consistently) |
| Gasket/Stem Seal | Neoprene |
| Test Pressure | 10kg./cm² |
| 1. Union Assembly ball valve is manufactured from polypropylene, a chemically inert thermoplastic. | |||
| 2. Union Assembly ball valve is specially suited for Drip Irrigation System and Sugar Industries. | |||
| 3. On line maintenance possible in this ball valve as all internals can be replaced without removing the valve from the pipe-line. | |||
| 4. Union Assembly ball valve contains no metal parts, failure due to corrosion eliminated. Widely used by chemical industries. | |||
| 5. Union Assembly ball valve possess excellent ultraviolet resistivity due to presence of carbon black. | |||
| 6. Proper care taken for full strength and leakage proof manufacturing design. | |||
| 7. Hydraulically tested at 10kg./cm². | |||
| 8. Union Assembly Ball Valve is approved and used by many renowed drip Irrigation manufacturers. |
PP Union Type Assembly Screw End | PP Union Type Assembly Plain End | PP Union Type Assembly Manufacturer |
|---|---|---|
PP Union Type Assembly Screw EndHigh quality product. Screw End PP Union | PP Union Type Assembly Plain EndHigh quality product. Plain End PP Union | PP Union Type Assembly ManufacturerManufactured in India. Manufacturer India |
Agricultural PP Union Type Assembly | Irrigation PP Union Type Assembly | Polypropylene PP Union Type Assembly |
Agricultural PP Union Type AssemblyHigh quality product. Agricultural Farming | Irrigation PP Union Type AssemblyHigh quality product. Irrigation Water | Polypropylene PP Union Type AssemblyManufactured in India. Polypropylene PP |
Industrial PP Union Type Assembly | Drip Irrigation PP Union Type Assembly | High Quality PP Union Type Assembly |
Industrial PP Union Type AssemblyHigh quality product. Industrial Heavy Duty | Drip Irrigation PP Union Type AssemblyHigh quality product. Drip Irrigation | High Quality PP Union Type AssemblyManufactured in India. High Quality Premium |
Heavy Duty PP Union Type Assembly | Best PP Union Type Assembly | PP Union Type Assembly India |
Heavy Duty PP Union Type AssemblyHigh quality product. Heavy Duty Strong | Best PP Union Type AssemblyHigh quality product. Best Top Quality | PP Union Type Assembly IndiaManufactured in India. India Made in India |
PP Union Type Assembly Ahmedabad | PP Union Type Assembly Gujarat | PP Union Type Assembly Dealer |
PP Union Type Assembly AhmedabadHigh quality product. Ahmedabad Gujarat | PP Union Type Assembly GujaratHigh quality product. Gujarat India | PP Union Type Assembly DealerManufactured in India. Dealer Distributor |
PP Union Type Assembly Distributor | PP Union Type Assembly Company | PP Union Type Assembly Price |
PP Union Type Assembly DistributorHigh quality product. Distributor Wholesale | PP Union Type Assembly CompanyHigh quality product. Company Poonam Industries | PP Union Type Assembly PriceManufactured in India. Price Best Price |
PP Union Type Assembly Supplier | PP Union Type Assembly Exporter | PP Union Type Assembly Manufacturer India |
PP Union Type Assembly SupplierHigh quality product. Supplier Trusted | PP Union Type Assembly ExporterHigh quality product. Exporter Worldwide | PP Union Type Assembly Manufacturer IndiaManufactured in India. Manufacturer Made in India |
Introduction :
Welcome to where we offer a comprehensive range of Union Type Assembly Screw/Plain End, Drip Valves, and Agriculture Valves. These high-quality fluid control solutions are designed to cater to the diverse needs of industries such as agriculture, irrigation, and more. In this article, we will delve into the features, benefits, and applications of these valves, showcasing their reliability and versatility in fluid control systems.
Union Type Assembly Screw/Plain End Valves :
Our Union Type Assembly Screw/Plain End Valves are engineered to provide efficient fluid control in various industrial applications. With their robust construction and reliable performance, these valves are suitable for demanding environments. Let's explore their key features and benefits:
1. Construction and Design:
- Made from high-quality materials like stainless steel, brass, or PVC.
- Union-type assembly for easy installation and maintenance.
- Available in screw end or plain end configurations, offering versatility for different piping systems.
2. Leakage Prevention:
- Precise machining and sealing technology ensure a secure and leak-free connection.
- Minimizes the risk of fluid leakage, enhancing safety and operational efficiency.
3. Versatility and Applications:
- Suitable for a wide range of fluids, including water, chemicals, and gases.
- Used in industries such as oil and gas, chemical processing, water treatment, and more.
- Designed to handle both high-pressure and high-temperature applications.
4. Easy Maintenance:
- Easy disassembly and reassembly for quick maintenance and repairs.
- Replaceable components, reducing downtime and cost of ownership.
Drip Valves :
Drip Valves, also known as Irrigation Valves or Emitters, play a crucial role in precision irrigation systems. These valves provide precise control over water distribution, ensuring optimal moisture levels for plants. Let's explore the features and benefits of our Drip Valves:
1. Adjustable Flow Control:
- Allows precise control over the amount of water delivered to individual plants or crops.
- Minimizes water wastage and promotes water conservation.
- Enables customization based on the specific irrigation requirements of different plant types.
2. Self-Cleaning Mechanism:
- Built-in self-flushing design prevents clogging or blockage.
- Ensures continuous and consistent flow, even in sediment-laden water conditions.
- Reduces maintenance efforts and extends the lifespan of the valve.
3. Durability and Resistance:
- Constructed from durable materials like UV-resistant plastics or corrosion-resistant metals.
- Withstand harsh outdoor environments and prolonged exposure to the elements.
- Long-lasting performance, reducing replacement and maintenance costs.
4. Easy Installation and Compatibility:
- Designed for easy installation and compatibility with various irrigation systems.
- Available in different sizes and configurations to suit different applications and flow rates.
Agriculture Valves :
Our Agriculture Valves are designed specifically for agricultural applications, offering reliable fluid control for farming and irrigation systems. These valves are engineered to withstand the challenges of agricultural environments. Let's explore their features and benefits:
1. Construction and Materials:
- Made from robust materials such as PVC, brass, or stainless steel.
- Designed to resist corrosion, chemicals, and UV radiation.
- Withstand the rigors of agricultural operations and harsh weather conditions.
2. Wide Range of Applications:
- Suitable for various agricultural systems, including irrigation, fertigation, and livestock watering.
- Provide control over water flow, pressure, and distribution in agricultural processes.
- Enhance efficiency and productivity in farming operations.
3. Valve Types:
- We offer a range of agriculture valves, including gate valves, butterfly valves, check valves, and pressure relief valves.
- Each valve type serves specific purposes in agricultural applications, providing optimal fluid control and safety.
4. Easy Maintenance and Longevity:
- Designed for easy maintenance and repair, minimizing downtime.
- Long lifespan, reducing replacement costs and ensuring continuous operation during critical farming seasons.
Conclusion :
At our website, we provide a wide selection of Union Type Assembly Screw/Plain End Valves, Drip Valves, and Agriculture Valves. These high-quality fluid control solutions offer reliability, versatility, and durability for various industries, including agriculture, irrigation, and more. With their advanced features and benefits, these valves can optimize fluid control processes, enhance efficiency, and promote sustainable practices. Explore our range of valves and find the perfect solution for your specific fluid control needs.
A PP (Polypropylene) Union Type Assembly is a pipe fitting used to connect two pipes or connect a pipe to a valve or other equipment. The "Union" design allows for easy disconnection and reconnection of the pipeline without cutting or damaging the pipes. It is available in Screw End (threaded) and Plain End (socket/solvent weld) types.
| Feature | Screw End | Plain End |
|---|---|---|
| Connection Type | Threaded (male/female) | Smooth, socket type |
| Installation | Screw/twist into fittings | Solvent cement / adhesive joint |
| Removability | Easily removable | Permanent joint |
| Application | Temporary or frequently dismantled lines | Permanent pipeline systems |
| Leak-proof | High (with thread sealant) | Very high |
Our PP Union Type Assemblies are manufactured using high-grade virgin Polypropylene (PP) material. It is strong, durable, lightweight, and resistant to corrosion, chemicals, UV radiation, and weathering.
We offer a complete size range from ½ inch (15mm) to 4 inch (110mm) in both Screw End and Plain End types.
| Size (Inch) | Size (mm) |
|---|---|
| ½” | 15 mm |
| ¾” | 20 mm |
| 1” | 25 mm |
| 1¼” | 32 mm |
| 1½” | 40 mm |
| 2” | 50 mm |
| 2½” | 63 mm |
| 3” | 75 mm |
| 4” | 110 mm |
Yes, absolutely. Our PP Union Type Assemblies are specially designed for:
Drip irrigation systems
Sprinkler networks
Agricultural water supply lines
Nursery and greenhouse piping
Fertilizer and chemical dosing lines
Farm water distribution
Yes. Both Screw End and Plain End assemblies are precision-engineered with O-ring seals and tight tolerances to ensure a 100% leak-proof connection even under high pressure.
Our PP Union Type Assemblies are designed to handle working pressures up to PN10 (10 kg/cm²) , suitable for standard irrigation and water supply applications.
These assemblies are designed to perform efficiently at temperatures up to 50°C to 60°C, making them suitable for normal water and agricultural fluid applications.
Yes. Polypropylene material offers excellent resistance to:
Corrosion and rust
Chemicals like fertilizers, pesticides, and herbicides
UV radiation (sunlight)
Weathering and aging
Most acids and alkalis
Yes. All our PP Union Type Assemblies are proudly manufactured in India at our state-of-the-art facility, ensuring premium quality and competitive pricing.
The main advantage is easy installation and maintenance. The union design allows you to:
Quickly connect or disconnect pipes
Remove valves or equipment for servicing without cutting the pipeline
Save time and labor costs during installation and repair
| Choose Screw End if… | Choose Plain End if… |
|---|---|
| You need frequent disassembly | You need a permanent joint |
| You have threaded fittings | You have socket/smooth pipes |
| You want easy removal | You want maximum leak-proof seal |
| You use metal or plastic threaded pipes | You use PVC/PP pipes with adhesive |
Yes. Poonam Industries provides reliable after-sales support, including:
Technical guidance for installation
Replacement assistance
Quick response to queries
Bulk order support
Yes. We offer bulk ordering options and can also customize specifications as per your project requirements. Contact us for detailed discussions.
Our standard PP Union Type Assemblies are available in Natural (milky white), Gray, and Black colors. Custom colors can be provided on request.
Installation steps:
Clean both pipe end and socket end thoroughly.
Apply PVC/PP solvent cement evenly.
Insert the pipe into the socket end fully.
Hold for 30 seconds to set.
Allow curing time as per adhesive instructions.
Installation steps:
Apply thread sealant tape (PTFE) or liquid sealant on the male thread.
Screw the union assembly onto the fitting hand-tight.
Use a wrench to tighten firmly (do not overtighten).
Check for leaks after installation.
Yes. Our PP material is non-toxic and safe for potable (drinking) water applications, subject to local plumbing standards.
We offer a manufacturing defect warranty on all our products. For detailed warranty terms, please contact our sales team.
You can place an order by:
📞 Calling: 9712533344
📱 WhatsApp: 9427957138
Or visiting our dealer/distributor network across India.
Yes. We export our PP Union Type Assemblies to various countries. Our products meet international quality standards and are trusted by global buyers.
| Feature | PP Union Assembly | PVC Union Assembly |
|---|---|---|
| Material | Polypropylene | Polyvinyl Chloride |
| Flexibility | More flexible | Rigid |
| Chemical Resistance | Excellent | Good |
| Temperature Resistance | Higher (up to 60°C) | Moderate (up to 50°C) |
| Weight | Lighter | Heavier |
| Cost | Moderate | Lower |
| Application | Chemical & hot water | Cold water & general use |
Yes. Both Screw End and Plain End assemblies are reusable. The union nut and O-ring can be replaced if worn out, extending the product life.
Yes. All our PP Union Type Assemblies come with high-quality EPDM or Nitrile O-rings for a secure and leak-proof seal.
We accept orders starting from small quantities to bulk wholesale. Contact us for specific MOQ details.
