“Rainson” PP Service Saddle

“Rainson” PP Service Saddle
Size	40,50,63,75,90,110,125,140,160,200,225,250,280,315mm X 15/20/25
Material	Polypropylene
Upto 315mm

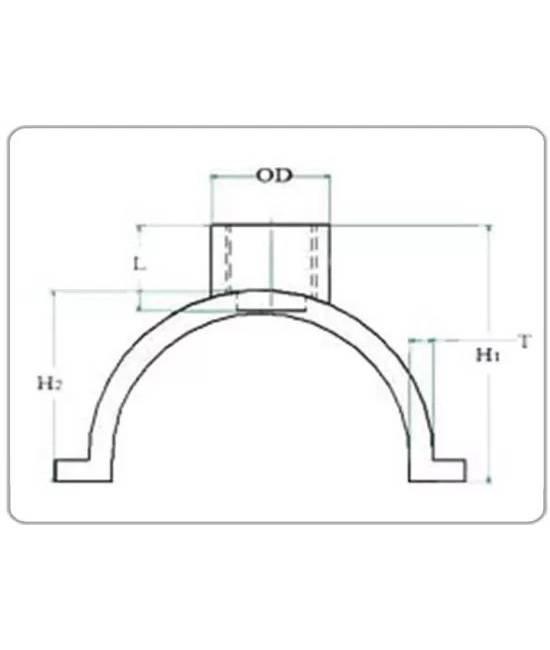

Dimension of "Rainson" PP Service Saddle

Size	Height “H1”	Height “H2”	“OD”	Thread “L”	Thickness
	With Neck Size in mm	Without Neck	OD on Thread	Length	Of body “T”
40 x 1/2″ (20mm)	50	27	30	24	6.5
40 x 3/4″ (25mm)	50	27	36	24	6.5
50 x 1/2″ (20mm)	58.50	32	31.5	27	6.5
50 x 3/4″ (25mm)	58.50	32	37.5	27	6.5
50 x 1″ (32mm)	52	32	44	21.5	6.5
63 x 1/2″ (20mm)	65	39	32	26	6.5
63 x 3/4″ (25mm)	65	39	38	25	6.5
63 x 1″ (32mm)	65	39	43.5	26	6.5
75 x 1/2″ (20mm)	71	46	31.5	27	8
75 x 3/4″ (25mm)	71	46	38.5	27	8
75″ x 1″ (32mm)	71	46	44	26.5	8
75 x 1.1/4″(40mm)	74	46	53.5	25	8
75 x 1.1/2″(50mm)	74	46	59	28	8
90 x 1/2″ (20mm)	78	54	31.5	26.5	8.5
90 x 3/4″ (25mm)	78	54	47.5	27	8.5
90 x 1″ (32mm)	78	54	44	26.5	8.5
90 x 1.1/4″(40mm)	77	54	54	26	8.5
90 x 1.1/2″(50mm)	77	54	59.5	26	8.5
90 x 2″(63mm)	85	54	72	32	8.5
110 x 1/2″ (20mm)	90	64	31.5	27.5	8.5
110 x 3/4″ (25mm)	90	64	37.5	29	8.5
110 x 1″ (32mm)	90	64	44	27	8.5
110 x 1.1/4″(40mm)	90	64	53.5	26	8.5
110 x 1.1/2″(50mm)	90	64	59	27.5	8.5
110 x 2″(63mm)	94	64	72	32.5	8.5
140 X 1″ (32MM)	112	82	45	33	10
140 X 2″ (63MM)	113	82	73	33	10
140 X 3″ (90MM)	121	82	111	42	10
160 X 1/2″ (20MM)	119	90	34	28	10
160 X 3/4″ (25MM)	118	90	41	28	10
160 X 1″ (32MM)	118	90	48	28	10
160 X 1.1/4″ (40MM)	120	92	56	28	10
160 X 1.1/2″ (50MM)	120	92	63	32	10
160 X 2″ (63MM)	121	92	75	32	10
160 X 2.1/2″ (75MM)	121	92	89	32	10
200 X 1/2″ (20MM)	139	115	34	32	10
200 X 3/4″ (25MM)	139	115	40	28	10
200 X 1″ (32MM)	139	115	48	28	10
200 X 1.1/4″ (40MM)	139	115	56	28	10
200 X 1.1/2″ (50MM)	139	115	62	28	10
200 X 2″ (63MM)	145	115	75	32	10
200 X 2.1/2″ (75MM)	145	115	89	32	10

“RAINSON” PP SERVICE SADDLE

PP Service Saddle

The service saddle is used for joining long distance irrigation pipes. It is also used for connecting the branches of MDPE, HDPE, PP and PVC pipes that are used while various irrigation processes and in house service connections.

Introduction :
"Rainson" PP Service Saddle is a versatile and reliable solution for connecting additional pipes to existing pipelines without interrupting the flow. These service saddles are used in plumbing and irrigation systems to create secure and leak-free connections. In this comprehensive article, we will delve into the features and advantages of "Rainson" PP Service Saddles. Whether you are working on a plumbing project or enhancing your irrigation system, understanding the capabilities of PP saddles will help you make informed decisions and ensure efficient and reliable pipe connections.

I. The Working Principle of "Rainson" PP Service Saddle:

1. Design and Construction:
- "Rainson" PP Service Saddles are made from high-quality polypropylene (PP) material, known for its excellent mechanical and chemical properties.
- PP saddle features a hinged design with a rubber gasket, allowing easy installation on existing pipes.

2. Tapping into Pipes:
- The service saddle is used to tap into an existing pipe, providing a branch connection for additional pipelines.
- It creates a secure and leak-proof joint without the need to cut the main pipeline, minimizing downtime during installation.

II. Advantages of "Rainson" PP Service Saddle:

1. Leak-Free Connections:
- The rubber gasket in the service saddle ensures a tight and reliable connection, eliminating the risk of leaks and pipe failures.

2. Easy Installation:
- "Rainson" PP Service Saddles come with pre-assembled parts, simplifying the installation process.
- They require minimal tools and expertise, making them suitable for DIY projects and professional installations.

3. Versatility:
- These service saddles are compatible with various pipe materials, including PVC, HDPE, and metal pipes.
- They can be used in plumbing, irrigation, and industrial applications.

4. Corrosion and Chemical Resistance:
- The PP material used in the saddles provides excellent resistance to corrosion and chemicals, ensuring long-lasting performance.

5. High Load-Bearing Capacity:
- "Rainson" PP Service Saddles are designed to withstand high pressure and heavy loads, making them suitable for demanding applications.

III. Applications of "Rainson" PP Service Saddle:

1. Plumbing Systems:
- "Rainson" PP Service Saddles are widely used in plumbing systems to connect new pipelines for residential and commercial water supply and distribution.

2. Irrigation Systems:
- These saddles play a vital role in irrigation systems, allowing easy connection of lateral pipelines to the main supply line, optimizing water distribution to fields and gardens.

3. Industrial Applications:
- In industrial settings, "Rainson" PP Service Saddles are used for connecting additional pipelines to existing ones in various fluid transportation and distribution processes.

IV. Installation Guidelines for "Rainson" PP Service Saddle:

1. Prepare the Pipe:
- Ensure the surface of the existing pipe is clean and free from debris.
- Measure and mark the location for the service saddle installation.

2. Position the Saddle:
- Open the hinged saddle and position it over the marked location on the pipe.
- Align the saddle properly to ensure a snug fit on the
